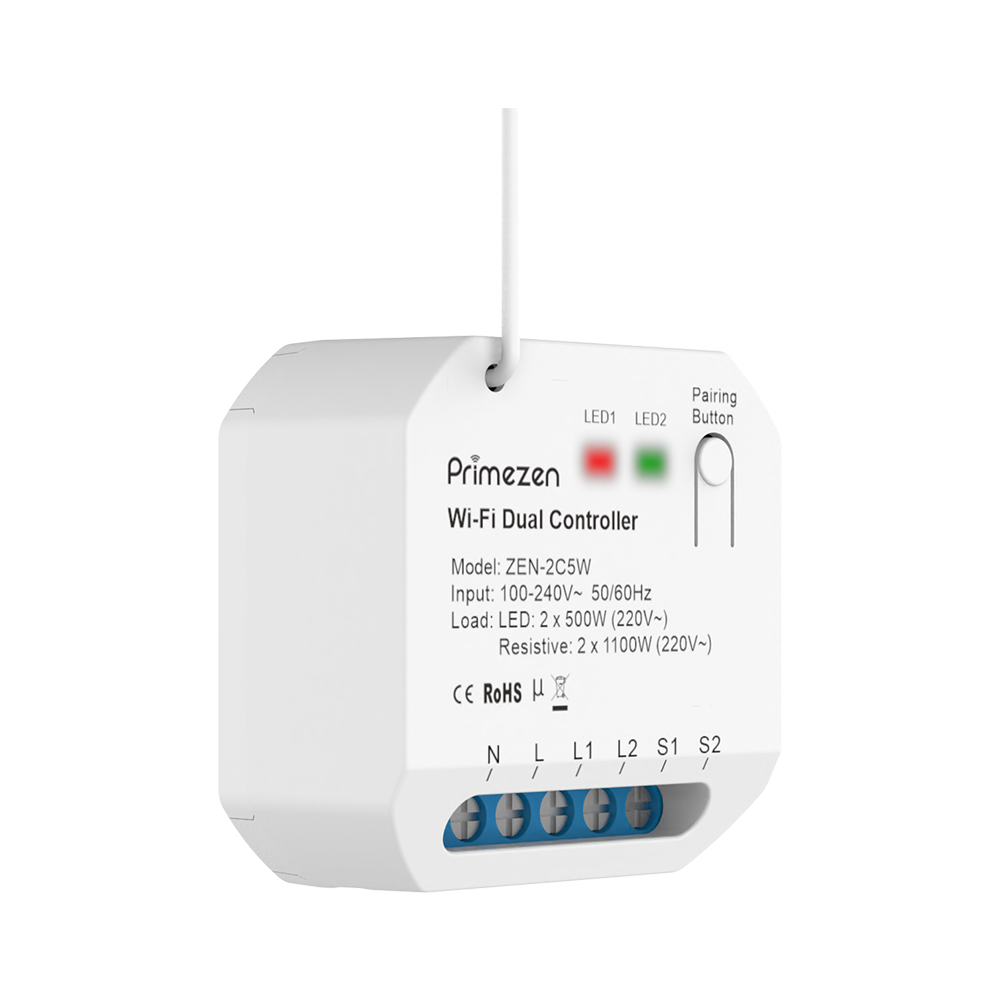

ZEN-2C5W LIGHT CONTROLLER
DUAL CHANNEL CONTROLLER
SPECIFICATIONS
-
Product Model
ZEN-2C5W
-
Output Channel
2 Channels
-
Maximum output power
LED: 500W/each channel (220V Input),
Resistive: 1100W/each channel (220V Input) -
Operate range
80m (Outdoors) 25m(Indoors),
Depending on building materials -
Wiring Method
Terminals
-
Dimensions
L44*W44*H22mm
-
Operational temperature
-20°C ~ +55°C
-
Standby power consumption
< 0.5W
-
Power Supply
AC100V -240V 50/60Hz
-
Operational current
5A*2
-
Radio frequency
RF 433MHz
-
Installation Method
The box of switch/socket, Light panel
-
RF Receive Sensitivity
-110dBm
-
IP Rating
IP20
-
Versions Available
ZEN-2C5W (Wi-Fi) ZEN-2C5 RF
(Needs Gateway for App/Alexa Control)
WIRING DIAGRAM
-
L (Live Cable)
Input Live Cable
-
S1/S2
Input Terminal for Traditional Switch, compatible with rocker switch and push botton (detect switch type automatically)
-
Power Supply
Common Neutral Cable
-
L1/L2
Output Live Cable, connect to lights
